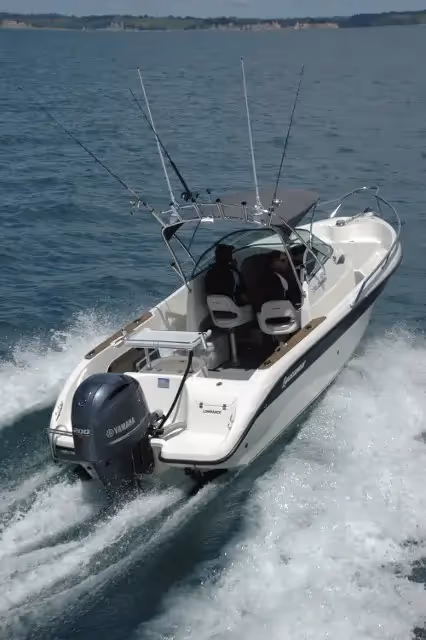

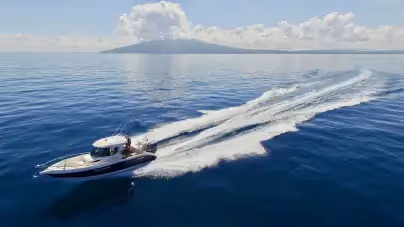

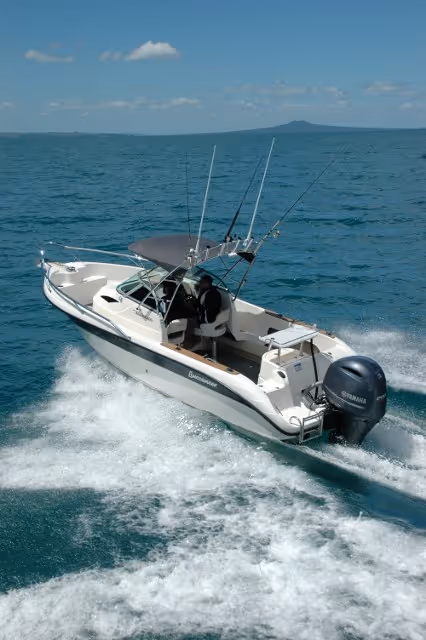

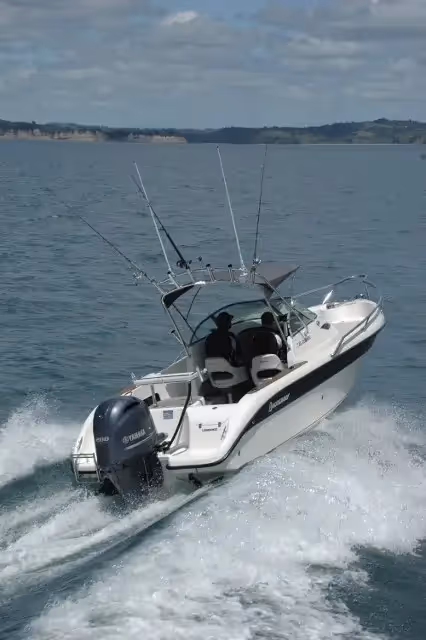

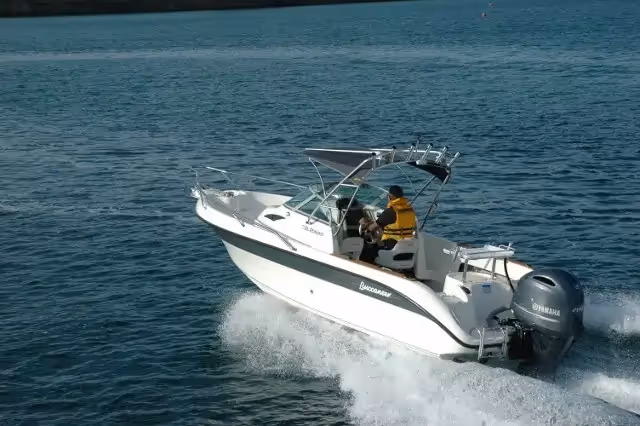

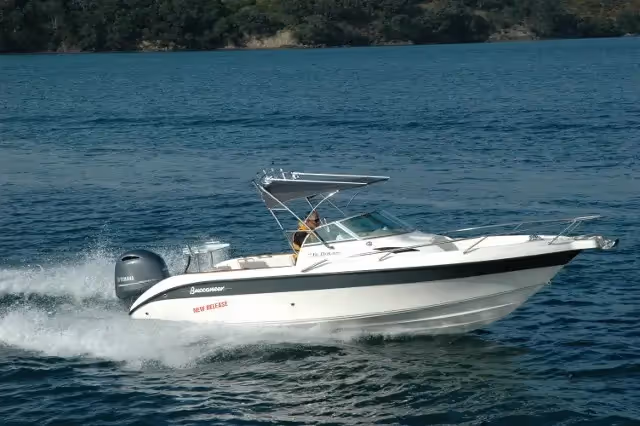

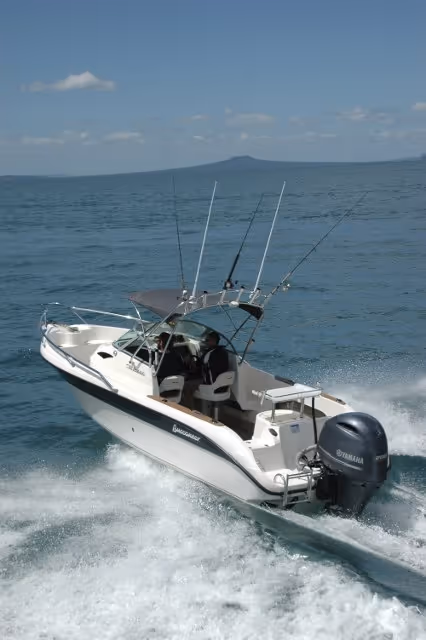

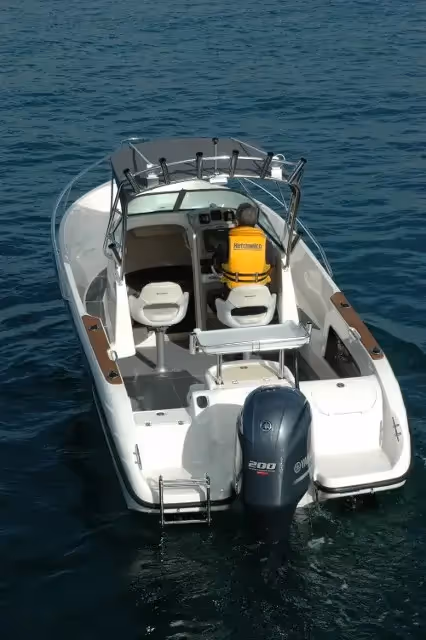

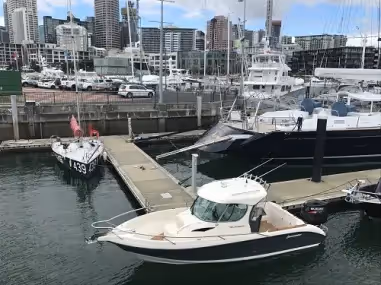

685 El Dorado - Centre Cabin Walkaround
Specifications
Deadrise
22.5 °
No of people/max weight kgs (plate CPC Ratings)
8/600kgs
Beam
2.488m
Height on Trailer
2.900m
Hull Length
6.820m
L.O.A including bow sprit
7.135m
Fuel Capacity (approx.)
240L
Width on Trailer
2.495m
Maximum Horse Power
250hp
Length on Trailer
8.500m
Hull Weight (approx.)
1,250kg
Total Road Weight (approx.)
2,220kg
Maximum Engine Weight
269kg
Bunk Length
2.000m
Standard Equipment
- Hydraulic steering
- Stainless Steel bait station
- Stainless Steel bow rail
- Stainless Steel folding extending ladder
- Stainless Steel cockpit grab rails
- Stainless Steel rod holders
- Alloy Fuel Tank
- Compass
- Teak coaming treads
- Cockpit rod racks
- LED Cockpit courtesy lights
- LED Navigation lights
- Toughened glass windscreen
- Transom bin
- Twin pedestal seats
- Chemical Toilet
- Polymer upholstery panel boards
- Polyurethane foam filled hull
- Fibreglass hull liner
- NZ CPC Standard
Optional Equipment
- Infill squab
- Rope chain capstan
- Rocket launcher and clears
- Wash down pump
- Electric Toilet
- Trim tabs
- Fusion stereo
- Live bait aerator
